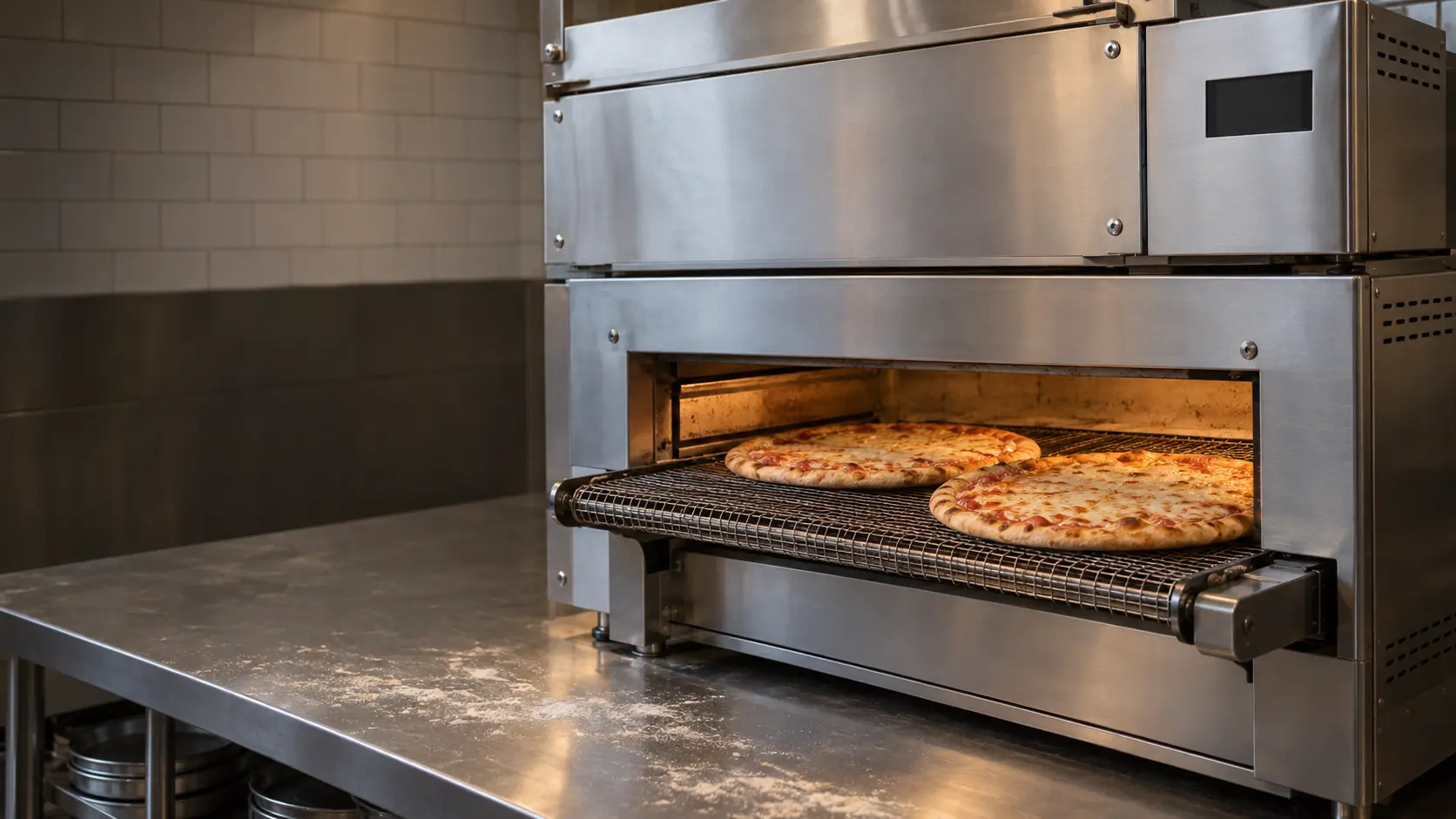

A stainless conveyor pizza oven on a pizzeria counter, the conveyor pizza oven's wire belt carrying two pizzas out of the tunnel mouth, a stacked tunnel oven above it, a tiled wall behind, warm indoor light.

Middleby Marshall
Pizza Oven Repair

A Middleby Marshall conveyor call is about the line: how many pies came out right before the belt slowed, stalled or the crust went pale.

(844) 747-3662

Mon–Sat, 8am–8pm

  • 1 pizza oven types
  • 6 problems we see
  • 16 error codes

Book a visit

Three short steps, about a minute.

or call (844) 747-3662

Middleby Marshall pizza ovens,
specifically.

Middleby Marshall, based in Elgin, Illinois, sells conveyor ovens and only conveyor ovens: the PS-series impingement ovens, the X-Series, the countertop X20 and X26, and infrared models. Most PS and X ovens come in gas or electric and stack up to three high, so the fuel, the model and which oven in the stack is acting up shape the whole visit.

The Middleby Marshall lineup

Builds1 pizza oven type

Conveyor and rapid-cook pizza oven

Called out forGas Pizza Oven Won't Light: Clicks, Gas Hiss, Still No Flame

and 5 more problems on Middleby Marshall

Repairs we do10 repairs, on any make

Pizza oven diagnostic visit · Pizza oven burner and igniter repair · Pizza oven gas valve and thermocouple repair · Pizza oven floor and dome repair

Error codesRESET IGNITION · HEATING ERROR · PROBE # OPEN · HIGH TEMP ERROR · FRONT BELT JAMMED

16 Middleby Marshall codes with a page of their own

The Middleby Marshall
lineup.

Middleby Marshall builds 1 of the 4 pizza oven types this site covers. Which one decides how the visit is planned.

All pizza oven types
Conveyor

Conveyor and rapid-cook pizza oven

5 of the problems we see on Middleby Marshall come up on it Conveyor and rapid-cook pizza oven repair

What is particular
to Middleby Marshall.

The PS-series (PS520, PS540, PS638, PS640, PS3240) are the classic impingement conveyors; the X-Series (X55, X55GWB) and the countertop X20 and X26 are newer; the DZ and LongWave models are infrared. Gas and electric versions use different parts, and stacked ovens are serviced one deck at a time.

A gas ignition with a set rhythm

A PS638 gas oven runs its main blower for 15 seconds, holds the burner at full valve for 60 seconds to light, then drops to a low flame for 80 seconds to clean the flame sensor before ramping up. If the flame is lost, it tries three spark and purge cycles before locking out, so a slow start is not always a problem.

Air fingers that must go back in order

Hot air reaches the pizza through removable fingers above and below the belt. The PS640 manual warns that fingers reassembled incorrectly after cleaning change the bake, and traces little or no air from the fingers to that reassembly.

A photo eye and energy modes

The PS638 can use a photo eye at the loading end to raise the blowers only when product goes in, and the PS640 steps down through energy modes when the belt is empty. A belt that stops or blowers that go quiet between orders are often these modes at work.

Split belts with their own drives

Dual-belt ovens show two bake times and report the front and rear belts separately, so one lane can stop while the other keeps baking. The X-Series goes further and runs each belt from its own drive board and breaker.

Parts

Middleby Marshall publishes parts lists that include the ignition module, the modulating gas valve, conveyor drive motors, control boards and digital displays. The model and serial plate decide which version applies,.

Repair or replace

A conveyor built like these is designed to be rebuilt, and blowers, belts, motors, ignition parts and probes are routine repairs. When a very old oven needs its controls, gas train and belt drive all at once, it is worth weighing that against a current model.

Book your Middleby Marshall visit

What we are
called out for.

On Middleby Marshall, most often gas pizza oven won't light: clicks, gas hiss, still no flame.

All problems

Middleby Marshall error codes

All Middleby Marshall codes
A stainless outdoor gas pizza oven on a patio counter in plain afternoon light, its door off and the pizza oven stone floor cold and empty, the burner channel along the back dark with no flame, the knob at the front.

Gas Pizza Oven Won't Light: Clicks, Gas Hiss, Still No Flame

7 causes, cheapest first

 A domed wood-fired pizza oven in a backyard on an overcast day, a small smoky fire of dark damp logs at the back of the pizza oven stone floor, the inside of the dome still black with soot, a pale raw pizza waiting on a peel resting on the ledge.

Pizza Oven Not Getting Hot Enough to Bake a Crisp Crust

7 causes, cheapest first

 A stainless conveyor pizza oven in an empty pizzeria kitchen, its wire mesh belt stopped with two pizzas sitting half inside the tunnel mouth, one crust darkening at the edge, the drive cover at the end closed.

Conveyor Oven Belt Not Moving or Stopping Mid-Bake

6 causes, cheapest first

 Pizzas coming out of the exit end of a stainless conveyor pizza oven on a wire mesh belt, the pies on one side of the belt golden brown and those on the other side pale, the dark tunnel of the pizza oven behind them.

Conveyor Oven Uneven Bake Across the Belt or From End to End

6 causes, cheapest first

Not a
Middleby Marshall?

Middleby Marshall is one of 16 pizza oven makes on this site. The other 15 each have a page of their own.

All 16 brands

Middleby Marshall pizza oven repair,
where we come out.

9 metros, each with its own page.

All service areas

Tampa BayFL · 31 areas

OrlandoFL · 30 areas

Miami / South FloridaFL · 47 areas

New York MetroNY · 75 areas

HoustonTX · 36 areas

ChicagoIL · 50 areas

Los AngelesCA · 95 areas

San DiegoCA · 31 areas

San Francisco Bay AreaCA · 74 areas

A family sliding a pizza into a wood-fired pizza oven on a sunny patio.
For the heart of your home.

Questions about
Middleby Marshall pizza ovens.

Why won't my Middleby Marshall belt move after I turn it on?
The conveyor stays still until the oven reaches its set points. If the screen shows the belt off while warming, wait; if the oven is hot and the belt still will not run, look for a jam with the oven off and cool.
My Middleby Marshall bakes differently since we cleaned it. Why?
The air fingers were probably put back in a different order. Middleby Marshall warns that incorrect reassembly changes the bake, so check them against the finger layout from your manual.
How long does a Middleby Marshall gas conveyor take to light?
On a PS638 the ignition sequence alone takes over two and a half minutes: a 15-second purge, 60 seconds lighting and 80 seconds at low flame before full power. That is normal.
Do you work on stacked Middleby Marshall ovens?
Yes. Double and triple stacks are serviced one oven at a time, so tell us which position is misbehaving when you book.
